Towers are often built on large, merged zoning lots to aggregate a significant amount of air rights for a new development. In many cases the merged lot is occupied by pre-existing buildings (built before 1961) which do not comply with current bulk regulations. The zoning lot may also be irregular or front on both narrow and wide streets. Although the focus of this post is to explore the limitations on tower lot coverage and tower encroachment near the streetline, it is important to acknowledge some related zoning concepts that apply to tower design:

• The existence of non-conforming pre-1961 buildings does not preclude the use of tower regulations on a merged zoning lot. (15 East 30th Street, 41 East 22nd Street)

• When zoning lots are split between districts and one of those districts does not allow for a tower, the tower calculations shall be based on the lot area of the zoning district that does allow for towers. (105 West 28th Street)

• For split zoning lots with non-contiguous portions in zoning districts that allow for towers, the tower calculations shall be based on the entire lot area of all portions that allow for towers. (220 Central Park South)

• For corner zoning lots, the encroachment area is determined by drawing a diagonal line from the point of intersection in order to separate the encroachment attributed to each street frontage. (267 Broadway)

• Buildings on a merged zoning lot which do not penetrate a sky exposure plane are not included in the encroachment calculations (35 Cooper Square)

The Zoning Text

The zoning resolution generally limits tower lot coverage to no more than 40% of the zoning lot area. Towers developed in accordance with sections 33-451 or 43-45 are further limited by the amount of encroachment within 50 feet of a narrow street and 40 feet of a wide street. As per section 33-451:

The level at which the “tower” begins is critically important to tower design on merged zoning lots.

The Tower Begins at 85 Feet...

Back in 2012, the Department considered a tower to begin at a height 85 feet above the base plane. In this ZRD1 for 41 East 22nd Street the applicant noted that

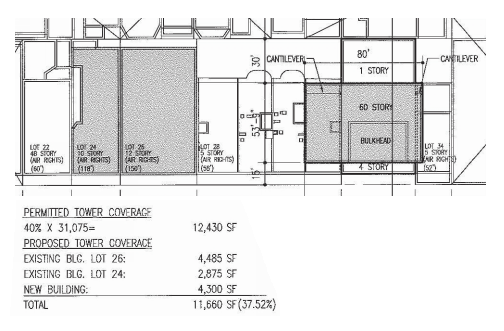

The applicant calculated tower lot coverage based on the footprint of all buildings at an elevation of 85 feet.

The Department confirmed the applicant’s analysis, writing:

A ZRD1 for 35 Cooper Square, approved in 2012, followed the same logic:

We see the same thing in 2014 in this ZRD1 for 15 East 30th Street:

The Tower Begins at 139 Feet?

But over the next few years a change in Department practice became evident in ZRD1 approvals. In this ZRD1 for 267 Broadway from 2017, the applicant writes:

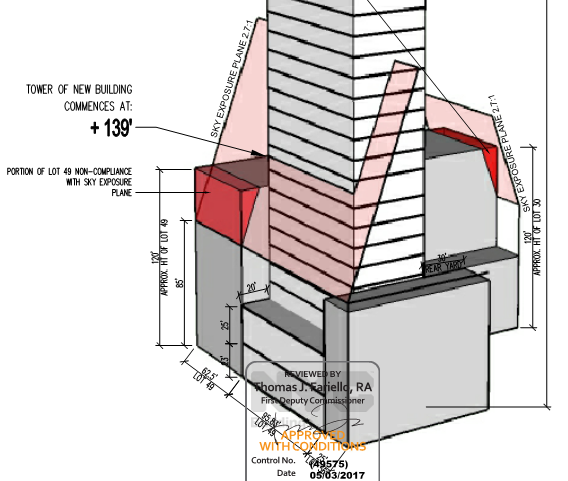

This concept is illustrated in a ZRD1 for 30 East 29th Street:

In this case, none of the pre-existing buildings exceeded the height at which the new tower penetrated the sky exposure plane. But in other cases, existing buildings rise on the streetline without setback and exceed 139 feet / 169 feet, leaving us with pre-existing, non-complying encroachment areas. For those development sites, the Department continued to include the entire footprint of the existing building in the lot coverage and encroachment calculations.

Pre-Existing Non-Compliances within the Initial Setback Distance

Some people questioned why a pre-existing non-compliance should be included in the coverage and encroachment calculations. In the following ZRD1 for One Madison Avenue, the applicant brought this issue to its logical conclusion and the Department approval in 2019 provides much needed clarity on the issue.

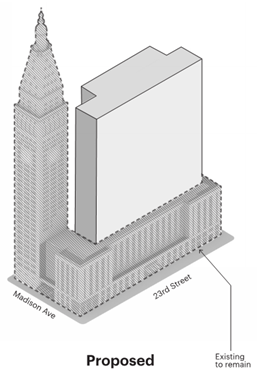

One Madison Ave is a zoning lot spanning the full block between Park and Madison Avenues and East 23rd and East 24th Streets. The lot includes an existing 16 story podium and a 47 story clock tower building. The proposal was to develop a tower above the podium:

The applicant had submitted a ZRD1 in 2018 to confirm that the podium should not be included in the tower lot coverage. The Department agreed:

But the Department also maintained that the clock tower building must be included in the tower lot coverage calculation:

The Department also emphasized that the non-complying portion of the clock tower building within the initial setback distance must be included in the encroachment calculation:

The applicant modified their design but not in a way that you would expect. Strangely, the applicant proposed even more lot coverage and encroachment by the new tower. This time around, they maintained that the existing non-complying portions within the setbacks are not relevant to the tower calculations. Having met with City Planning and the Building Department to review this new approach, they noted in a subsequent ZRD1 that:

Of critical importance here is the exclusion of the non-complying portions at any height within the initial setback distances. This idea is well illustrated in the applicant’s diagram for tower lot coverage:

The applicant sought to extend this logic to the encroachment calculation, writing,

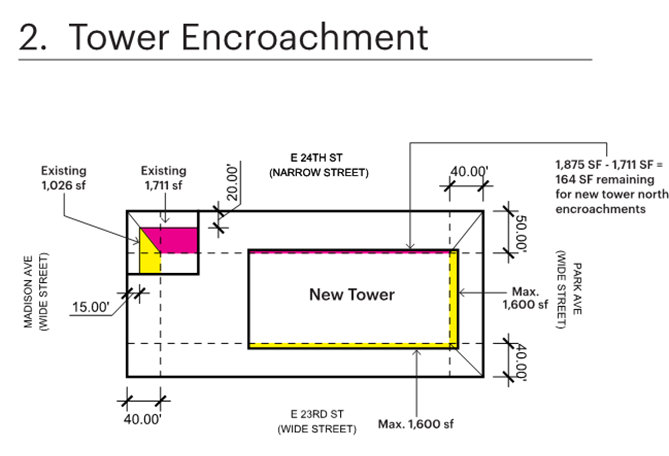

The applicant proposed the following diagram for tower encroachment, excluding the portion of the existing building within 20 feet of a narrow street and 15 feet of a wide street:

The department saw the logic in this approach, approving the request and concluding that:

Conclusion

In the course of just a few years, department practice has evolved to allow greater design flexibility for these large and challenging tower development sites. The idea that towers begin at the height at which they penetrate the sky exposure plane is logical and clearly rooted in the text of the Zoning Resolution. The exemption of the non-complying bulk within the initial setback distance seems a bit more subject to current department interpretation. Nonetheless, it is a welcome outcome and is allowing architects and owners much more flexibility to design and develop the best possible buildings.
